IKEA LEDARE LED1472C3 E14 200 lm Review

(If you can not access the Photo, pls go to google photo, link. )

LED Bulb Front Package

led-bulb-package

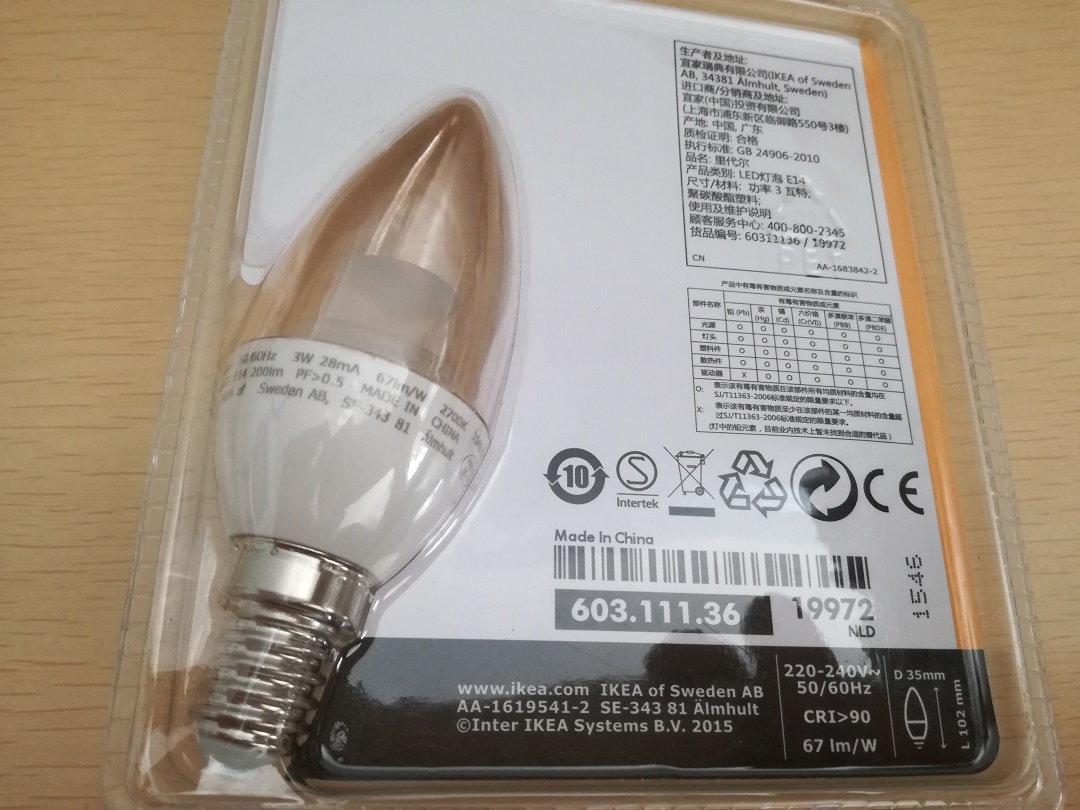

LED Bulb Back Package

led-bulb-package2

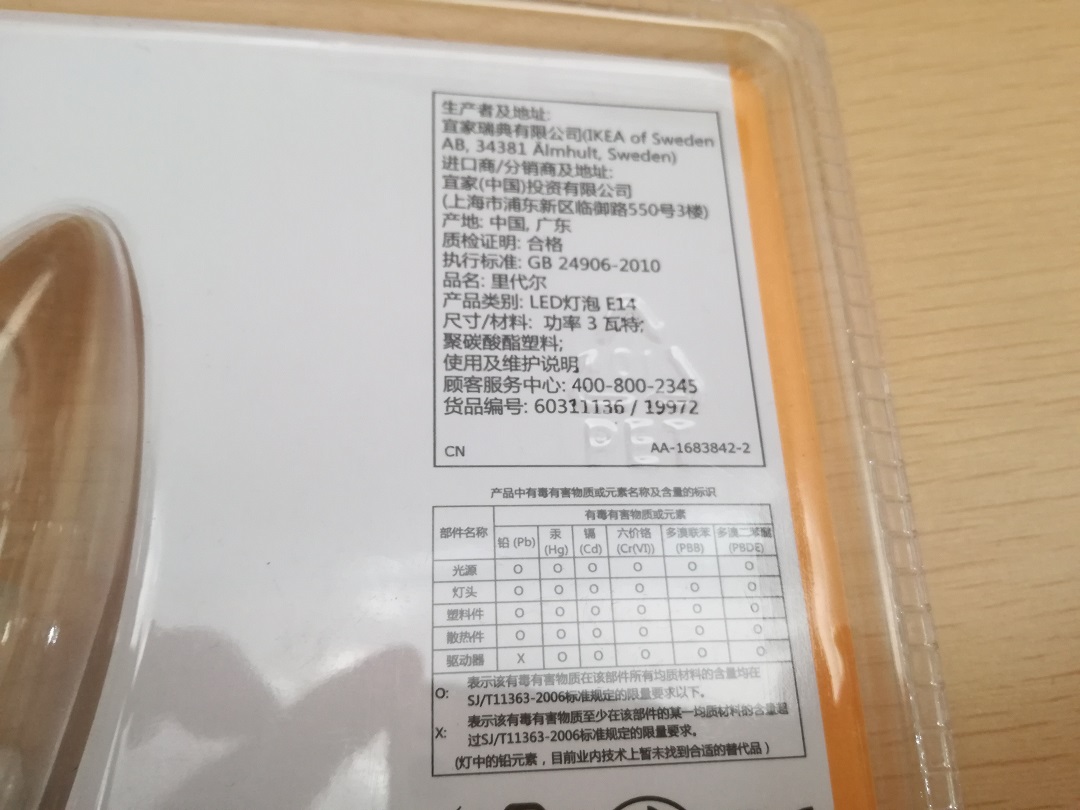

LED Package 3

led-package-3

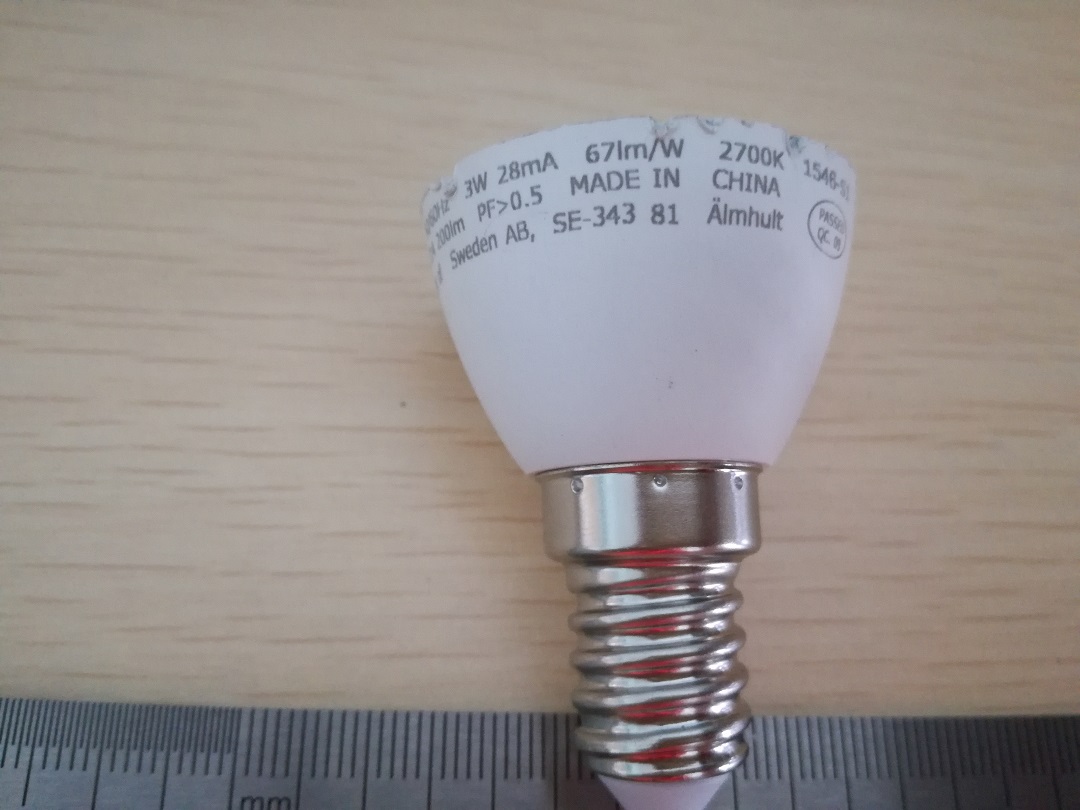

LED Label

LED-label



You can not find the IEC 62471:2006 in the package, Why?

Model No. LED1472C3
Brand IKEA LEDARE
Input Voltage 220 -240 Vac
Input Current
Frequency 50/60
Wattage 3 W
Power Factor >0.5
Lumen 200 lm
CCT 2700 K
Lamp Cap E14
CRI > 90
Luminous Efficiency 67 lm/w
Dimension D 35 mm, L 102 mm
Pb Driver
Life Span 25000 hours
Dimming No
Warn Up Time <1 second
On & Off Time 25 000 Time
Original Made In China
LED SMD Type
Weight 36.6 g, 1.29 lb, 0.081 OZ
Safety CE, S(Intertek), GB 24906-2010(Like IEC 62560)

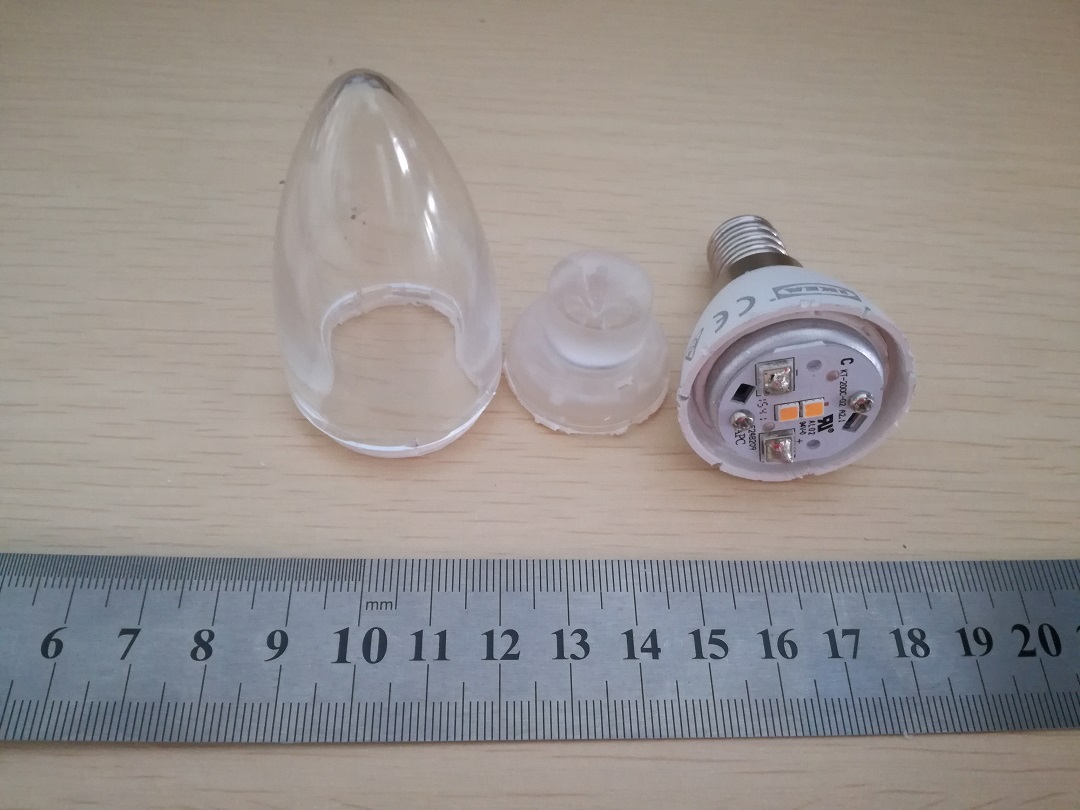

Remove the Cover

remove-cover

Thermal Test

Before we go headed, I tested the LED bulb.

LED chip temperature is 110 C in 1 min.

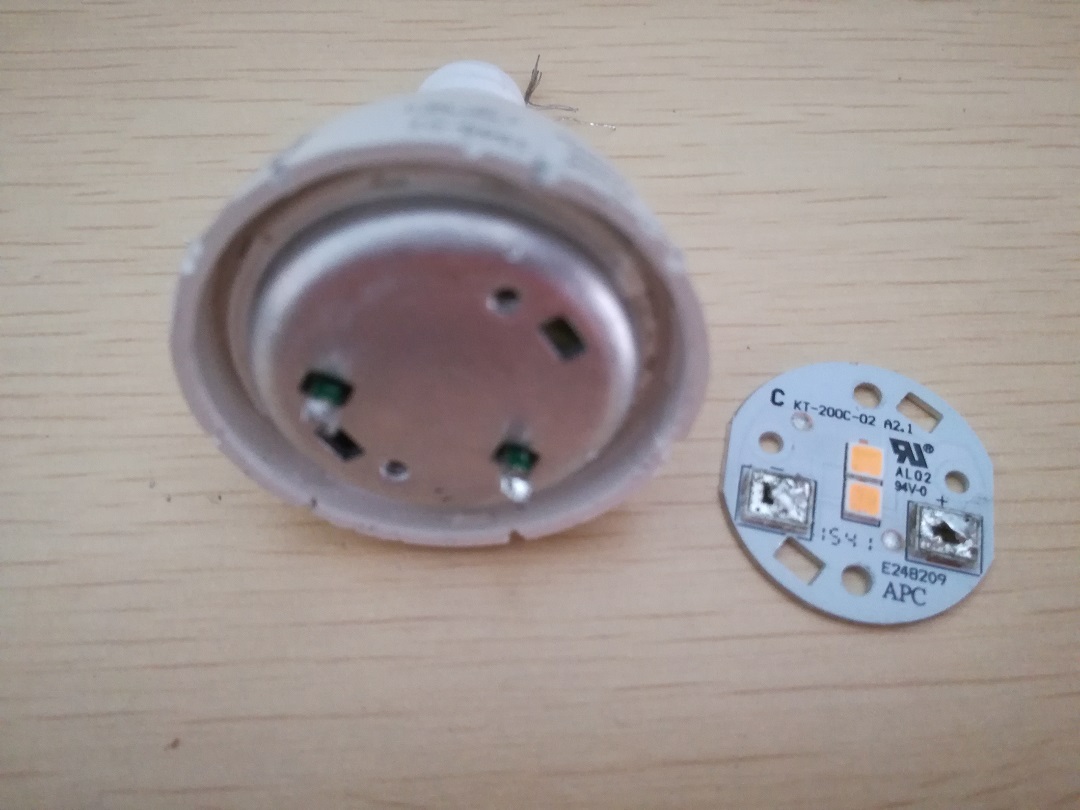

LED Chip

led-chip

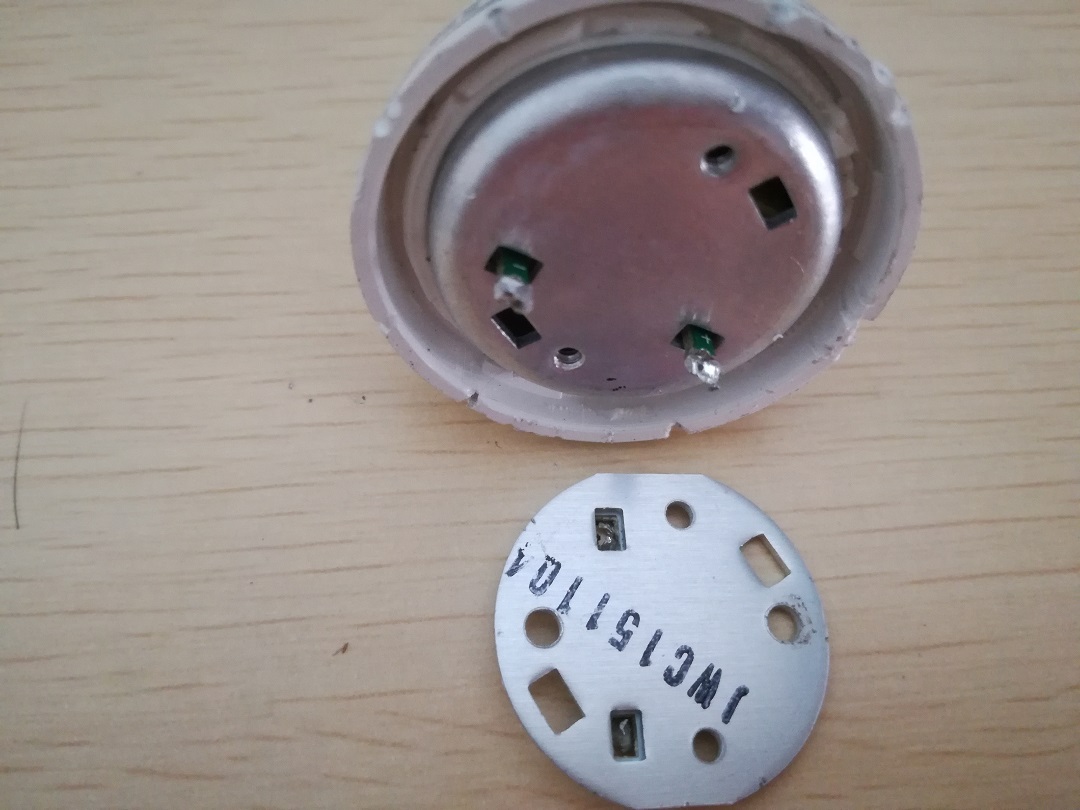

LED Chip

led-chip-2

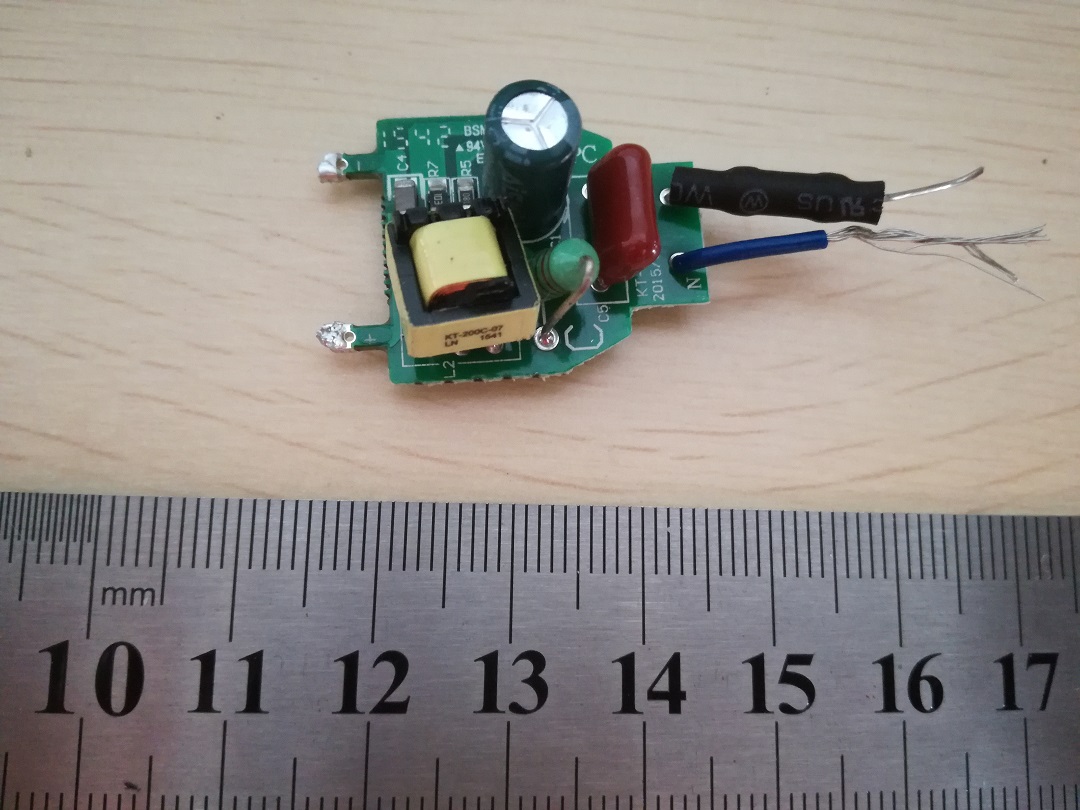

LED Driver Front Side

LED-driver-front

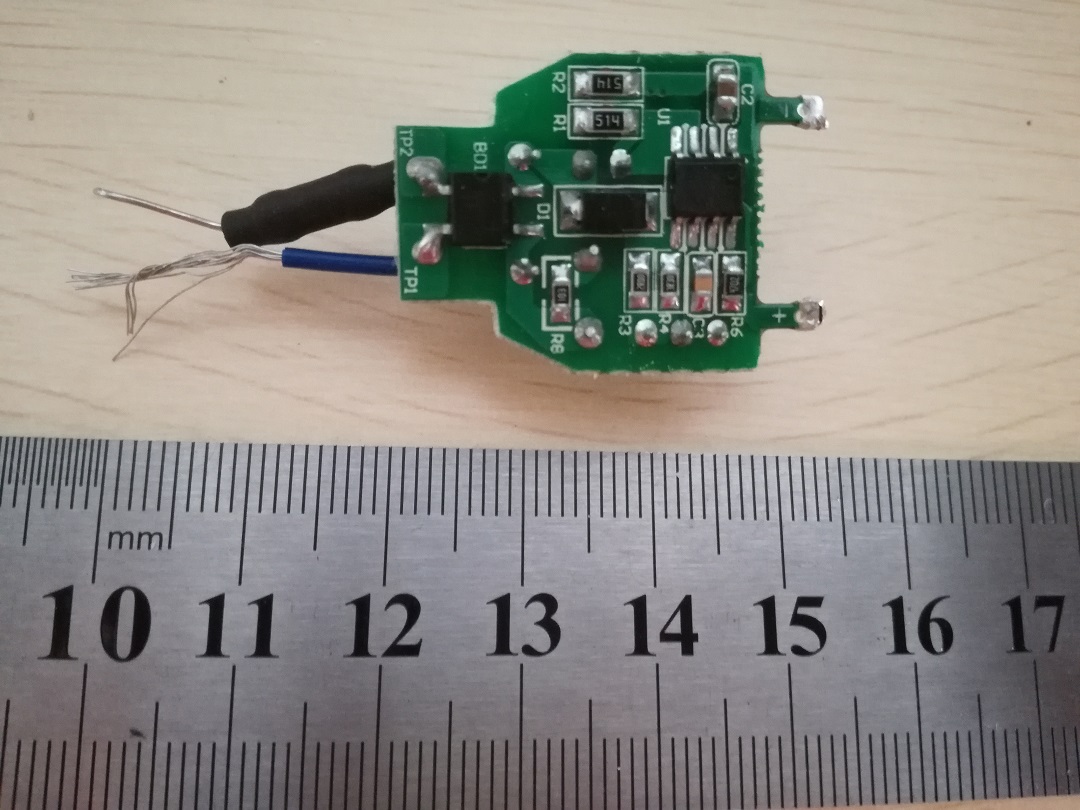

LED Driver Back Side

led-driver-back

Date Code

led-driver-pcb-date

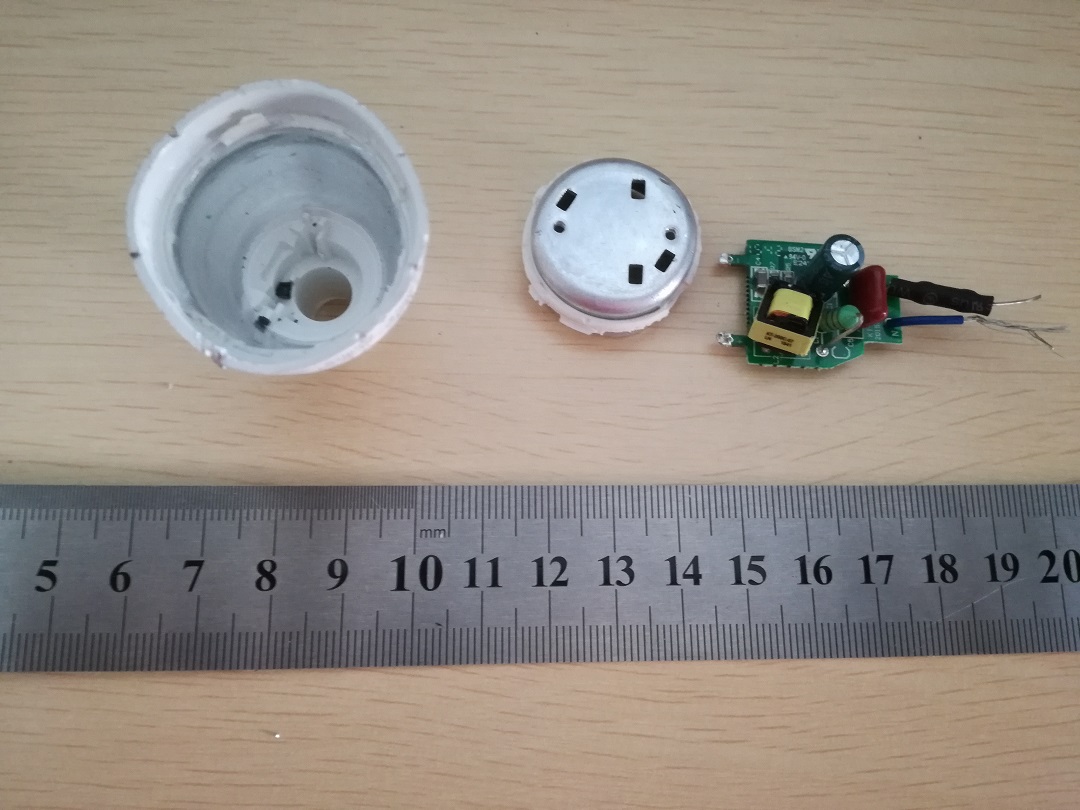

Parts

parts



Refer :

https://photos.app.goo.gl/pKPg5UCIJHrQOL0I3
