LED UNDER CABINET INSTALLTION

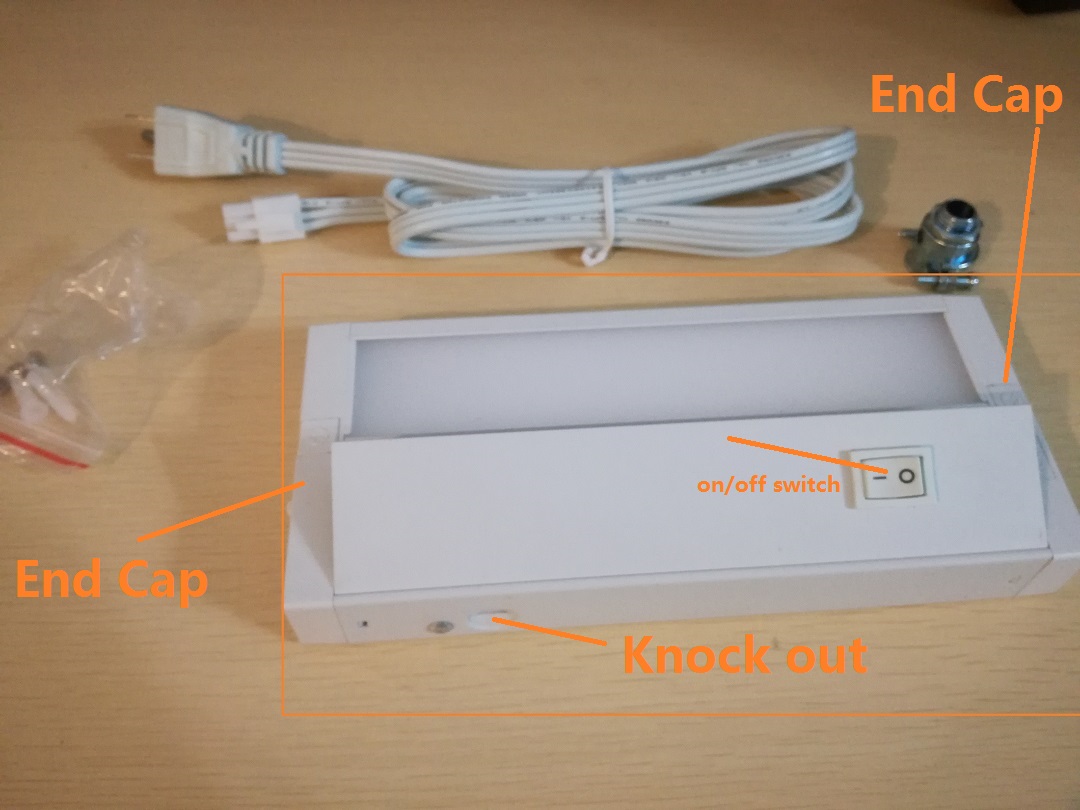

This the LED under cabinet in my kitchen. Except the LED under cabinet, there are accessories, they are supply cord with plug, conduct fitting, connector, interconnecting cord and junction box.

The housing may be die cast aluminum, there are 2 knock out on the housing, one in on the back, another is on the side. When you try to hard-wired via the conduit, it is really hard. Do not recommend to installed this product by hard wire. If you want this method, remember to use the conduit fitting.

There are 2 connector on the end cap. But i want to say the supply cord is hard to match up the connector, easy to loosen.

LED-under-cabinet-2

Rating

Model LED Under Cabinet
Input Voltage 120 Vac
Frequency 60 Hz
Input Current 60 mA
Wattage 4 W
Location Suitable for Damp Location
Maximum Interconnected Unit 50 PCS
Warning Suitable for under-cabinet mounting

Input Test

The input current and wattage do not exceed 110 percent of the unit rating.

Model LED Under Cabinet
Input Voltage 120.37 Vac
Frequency 60 Hz
Input Current 36 mA
Input Wattage 4.2 W
Output Voltage 40 Vdc
Output current 89 mA

Flicker

Now, most LED product has this issue, I am going to open my Phone camera. You can see the video below. Some say you are wrong with the phone camera to test flicker, yes this is not the good method, but for consumers, this is the best cannon to help out life better. And when you want to share the the food to your friends, taking the pictures in the kitchen, if you find the light and dark strip, it is annoying. Right?

Thermal Test

Start time from 2017-05-08, 14:30 to Stop time  2017-05-08, 15:30, Room Ambient is about 27 °C,  as the wattage is low, the temperature is so low. The data of  LED Chip is taking out the original location.

The results of the  tests are considered really good.

 Thermocouple Location  Temperature, °C
 Mounting Surface  31.3
 Diffuser, outside, nearest to LED  30.1
 LED chip  62.5



Tear down

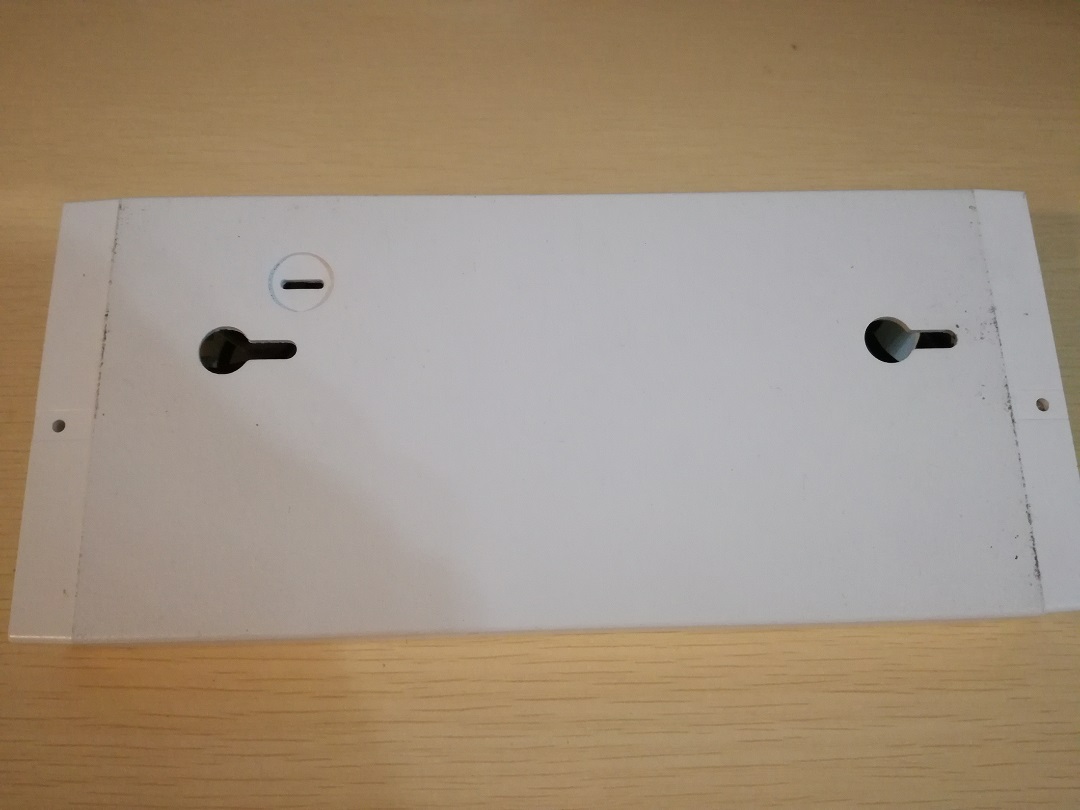

Back housing, 2 mounting hole, one conduit open.

mount-hole

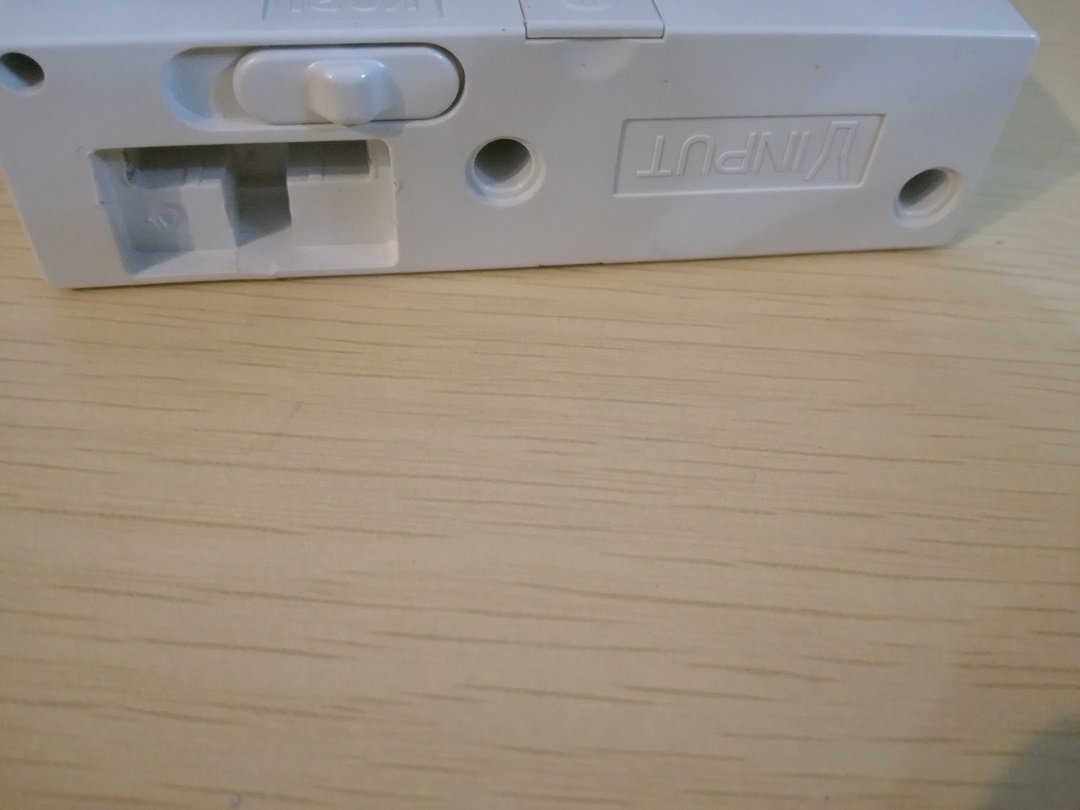

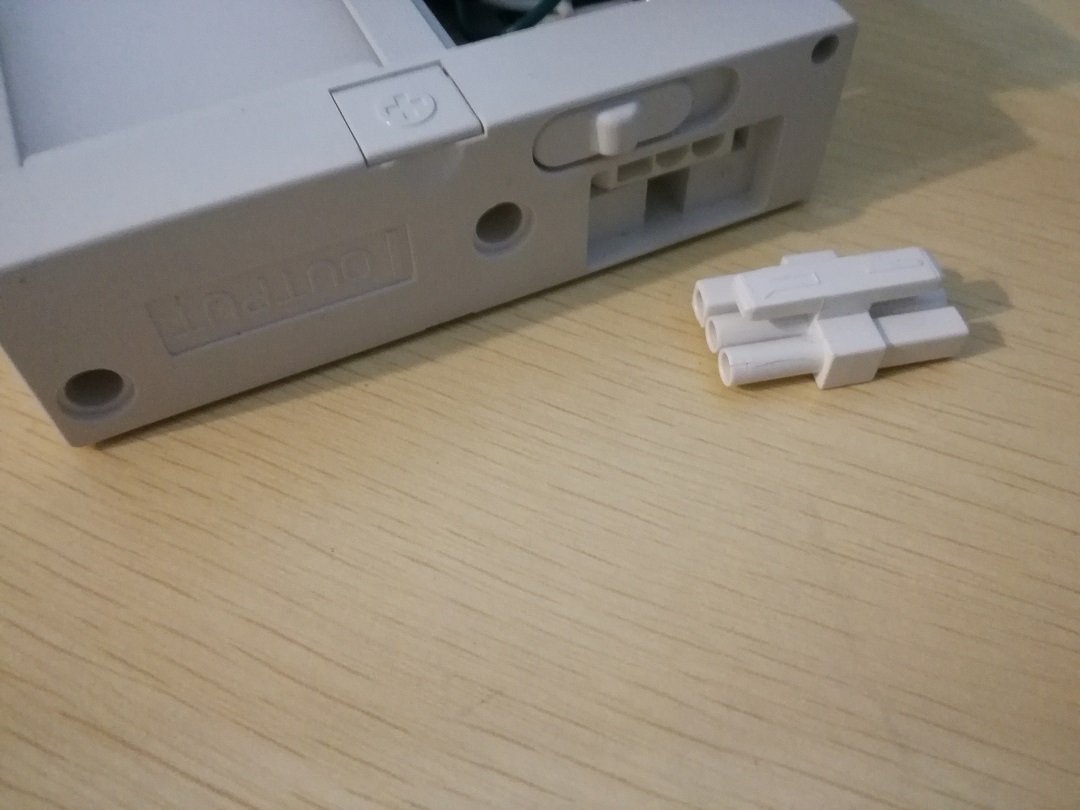

End Cap, you can the letter OUTPUT,  for interconnecting use. You can move the slide open the driver cover.

end-cap-1

end-cap-3

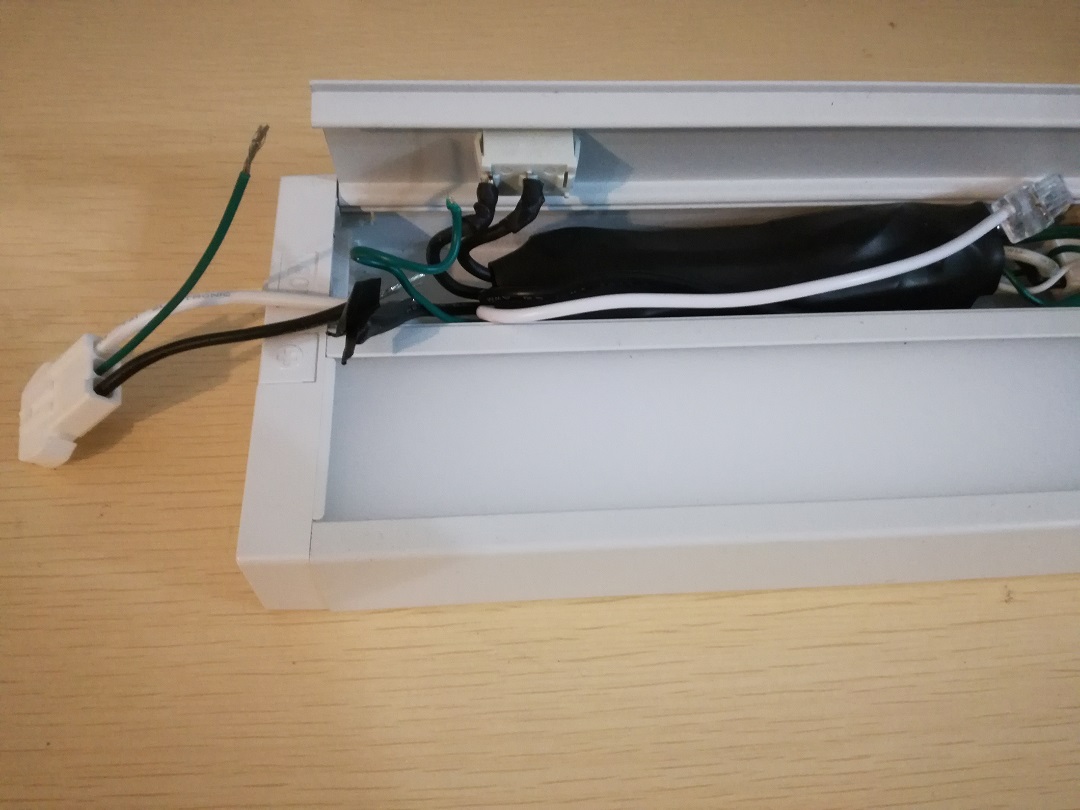

When you open the driver cover, you can see the driver, switch, some wires, connector. LED driver is wrapped by heat-shrink tube.

inside-the-housing

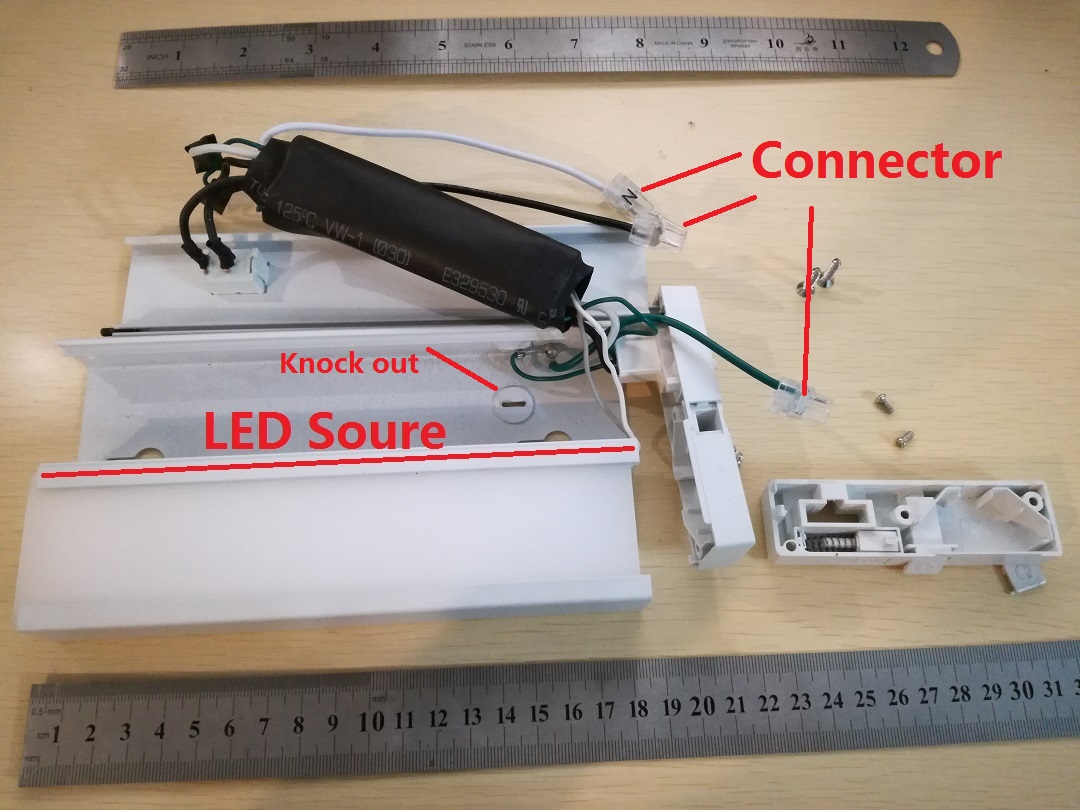

Here is parts of this LED under cabinet.

parts

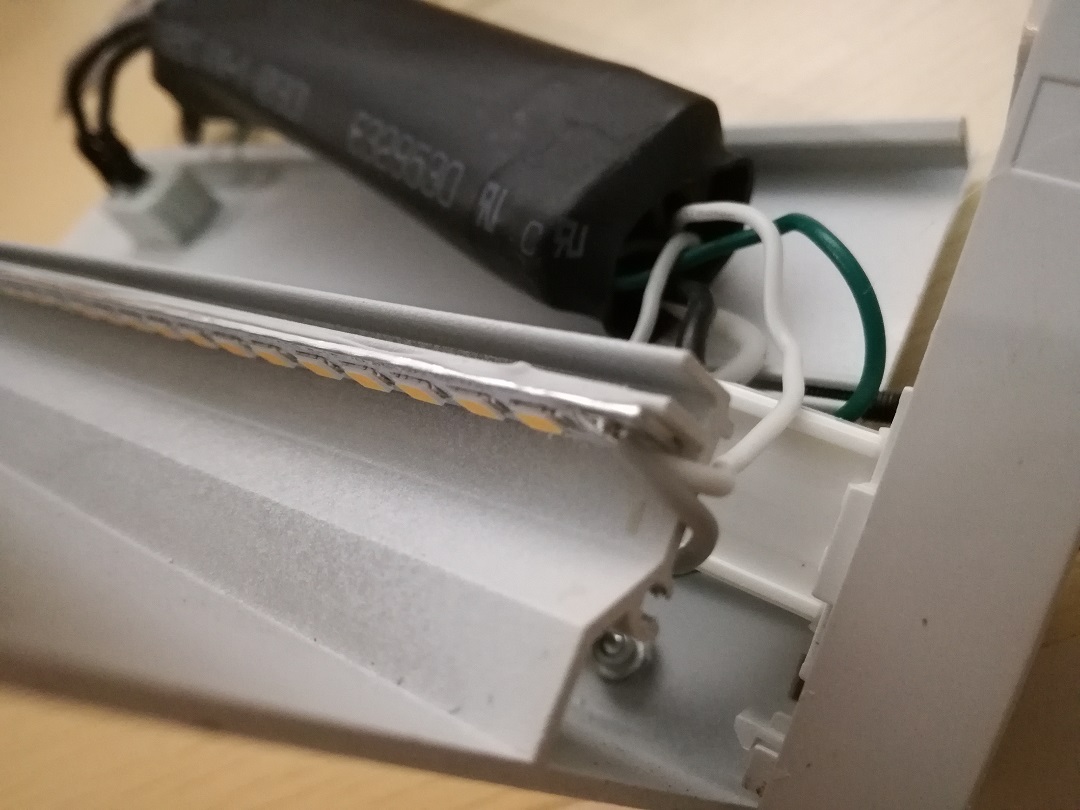

The LED module is mounted under the housing with glue, see above the photo to check its location, the PCB is 178 mm length by 6 mm width, 1 mm thick. But input wire of the LED module seems is soldered by hand.

LED-chip

The E331780 is UL file number, which is owned by SHENZHEN JIN SHI YU ELECTRONIC CO LTD, model is MY-M, max temperature is 90 °C. Here is detail link.

The SMD LED is soldered on the PCB, total 28 PCS, consider the UC8-14S29 and output voltage, the LED wattage is 0.12 W, 2.8 Vdc, 0.42 mA.

Turn the light on.

LED Driver

The inside layer of  LED driver is wrapped by PET material, I guess. Input lead are 18 AWG, 300 Vac, 105 °C. Output leads are 24 AWG,  300 Vac, 105 °C.

led-driver-front

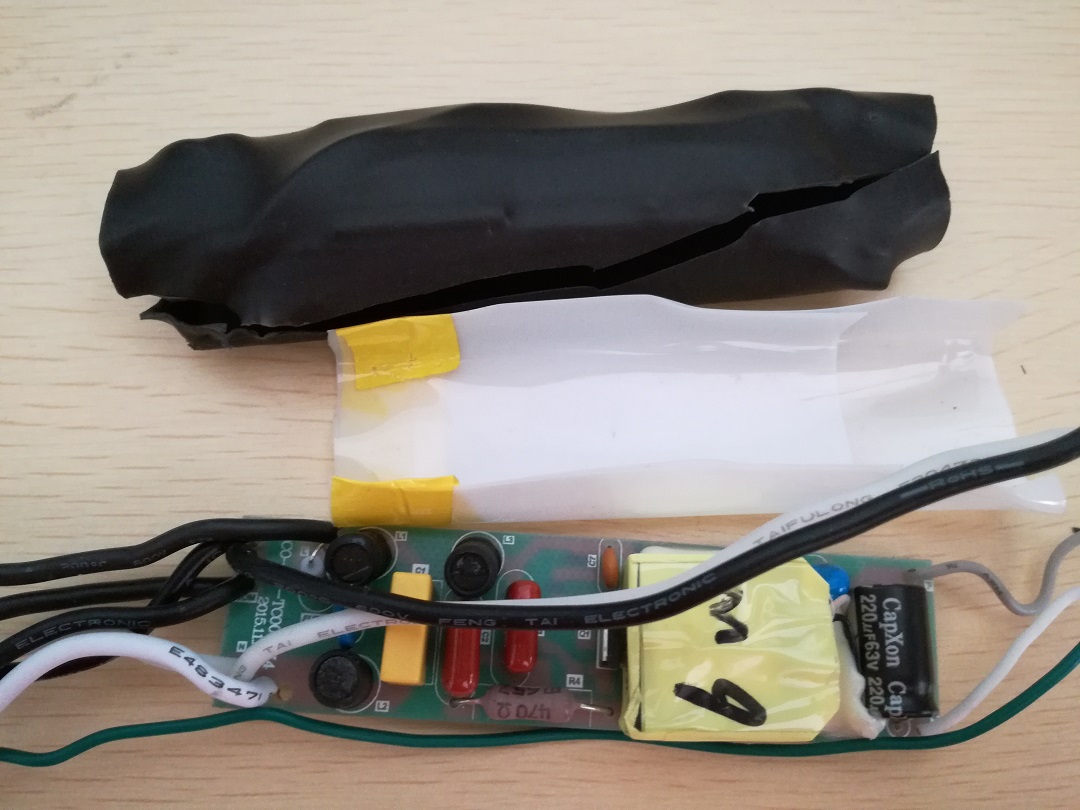

LED driver Front Side

led-driver-back

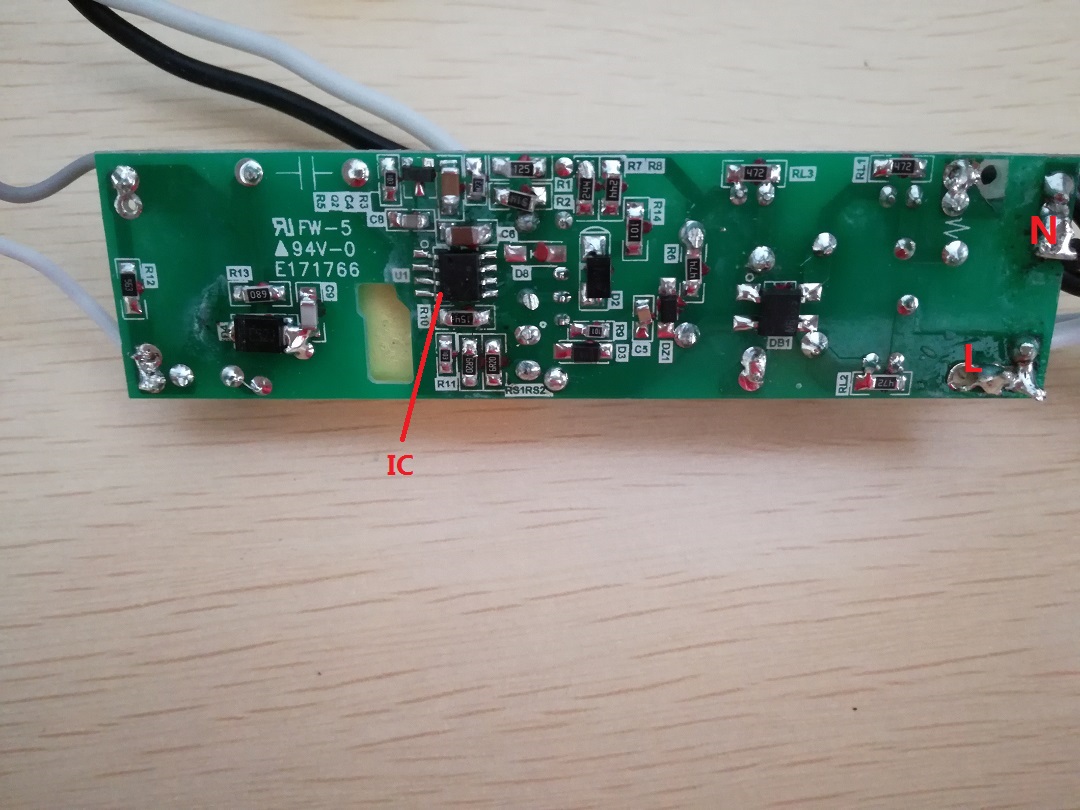

LED Driver Back Side

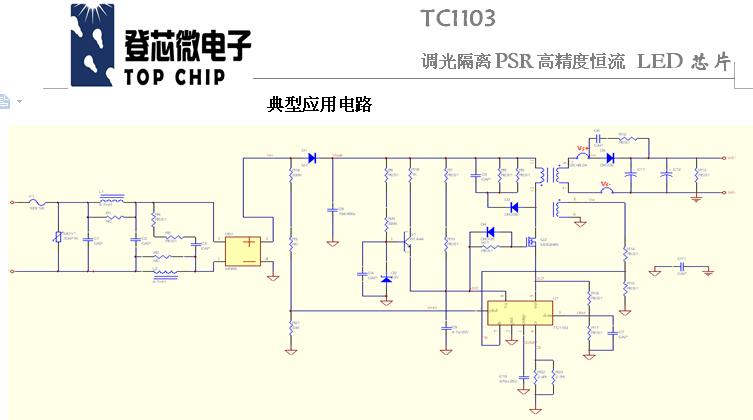

The IC is TC1103, from Shanghai Top-Chip Micro-electronics Tech.Co.,LTD.

IC

Other’s key component of the LED driver for reference:

The MOS is Model SVF4N65MJ, from Silan miro. Here is the data sheet link.

The Fusing Resistor  is 22 W by reading the color code.

The bridge is MB10S.

The outpur E-Cap is Rated  63 V, max. 220 µF, min. 105 ºC.

The Y Capacitor is rated 250 V,  2200 pF, 100ºC.

The X Capacitor is Rated 150 Vac, 85 ºC.
