Lifesmart Bluetooth LED Smart Bulb Teardown

Note: When you dissemble, be careful. All the testing data for reference. All the picture are in the Google Photo(link:https://photos.app.goo.gl/UcSLEnXFWh4HiL438).

In this post, i am going to learn from the Lifesmart Bluetooth LED Smart Bulb. The price is so weird!! LOL. Why, In China Mainland, it sells 15 USD/ 99RMB(Link), But in Amazon US, it is 26 USD(Link), in Zapal 22.99 USD(Link)(Price checked on 08/18).

Below including 5 different parts. You can choose the part you like.

  • Appearance
  • Testing
  • Lighting Output
  • Teardown
  • Conclusion

Part Package

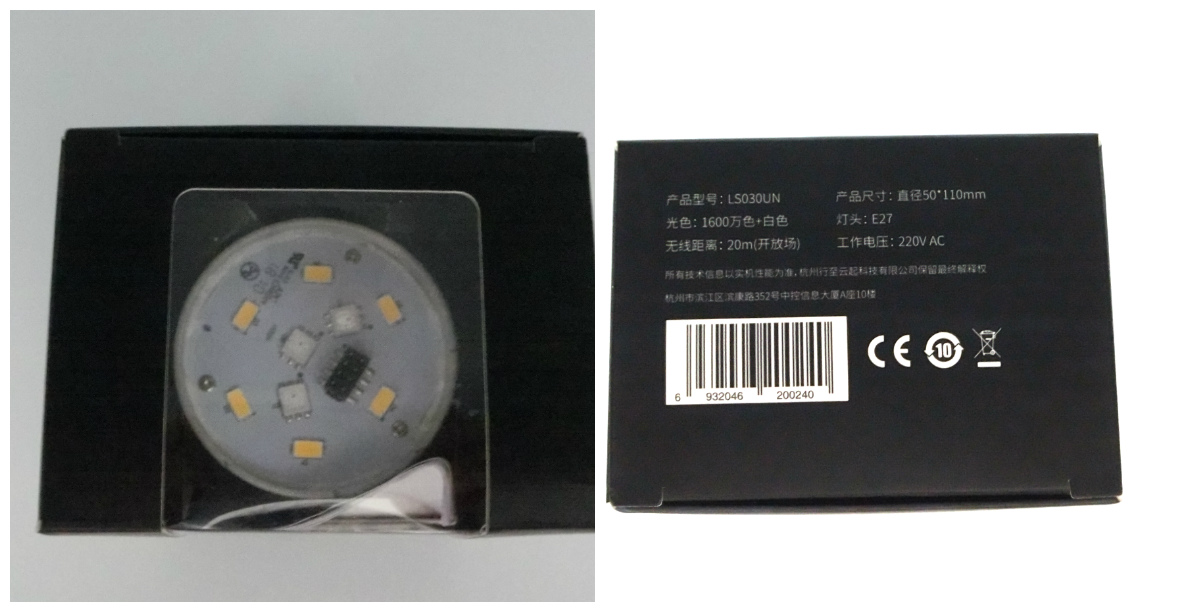

Product Package, from the top view and bottom view. the cover is removed by me. So you see the LED board directly.

lifesmart-bluetooth-smart-bulb-package-bottom-top

Front View and Back view, it tells you the function of this smart bulb. But I do not know the one you buy from other website is same as this one. I watched the video in the Youtube, someone may but it from ebay.

lifesmart-bluetooth-smart-bulb-package-front

Here is the side view. All LED Smart Bulbs saying 1600 Million. I do not like this, it is no use for us. Damn. Woop.

lifesmart-bluetooth-smart-bulb-package-side

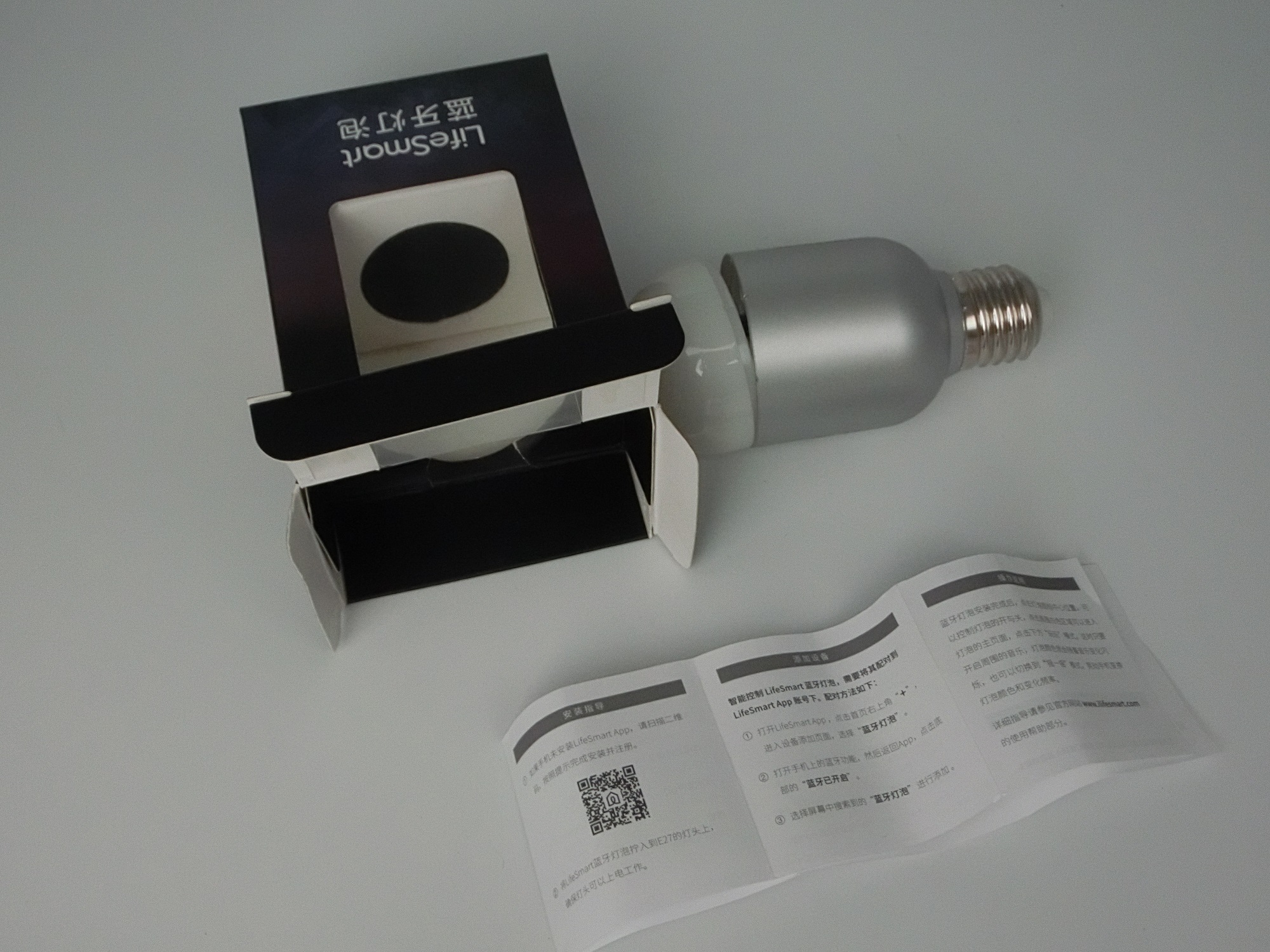

Inside the package, an LED bulb and one manual. In Chinese.

liesmart-inside-package

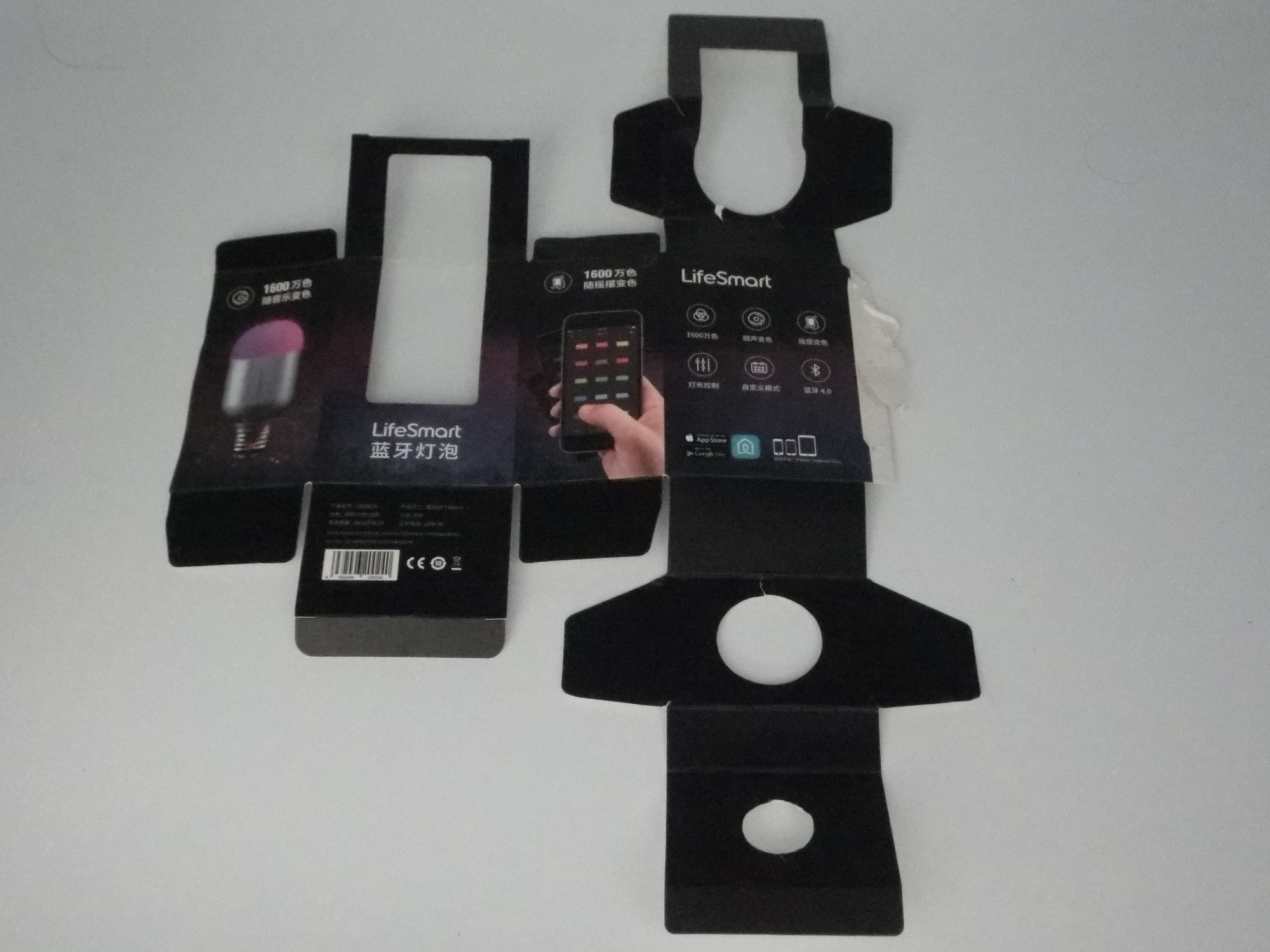

How about this package design? It is good for the package engineer.

liesmart-package

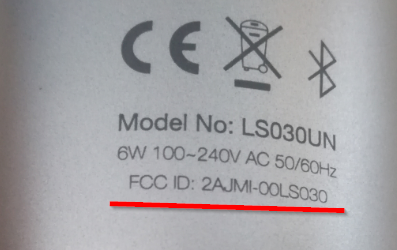

On the body, you can find the FFC no, you can also search the google, you also see the more info.

lifesmart-LED-BULB-Label

I am a bit confused about the drop of tin, why? What is going on there?

lifesmart-LED-BULB-solder

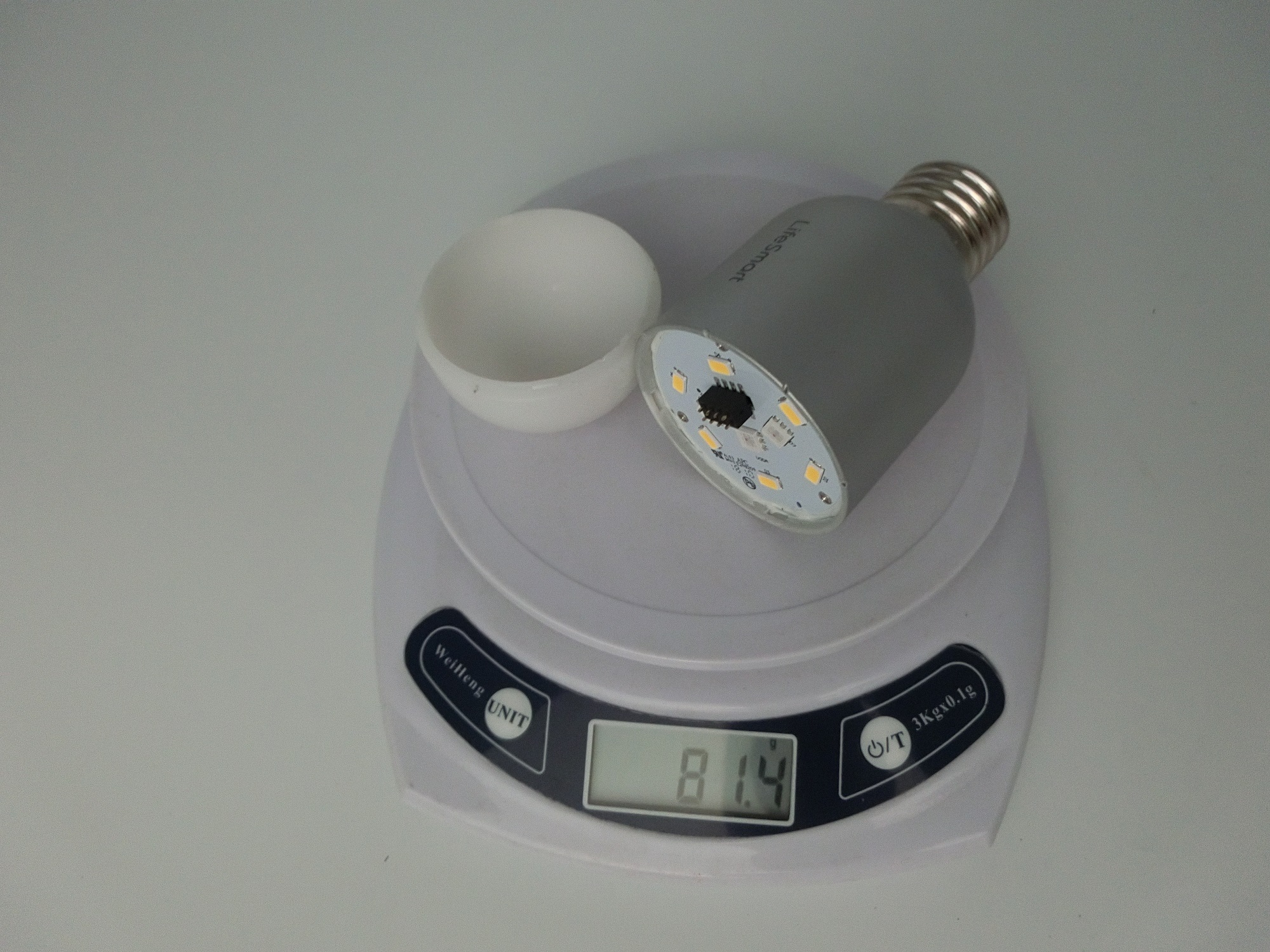

Here is the weight, 81.4 g. It may tell us there is no potting inside.

liesmart-weight

Testing

Temperature Test

Test Conducted at the 220 Vac(China Mainland,Input Voltage will fluctuate ), frequency 50 Hz. But do not tested with the test box, as I am based at home, but tested base up and down. The LED chip only testing based up.

Reviewing the testing data, the test results are considered acceptable, as I tested some location of the LED bulb. some of you may say it is great, the temperature is not too high. It will last long in the future. But please remember that bulb is only 4.8 W max! It claimed 6 Wattage.

If you check the construction in the Teardown Part, I think the heat system is not good. when in the developing this product, the brand may not do the thermal simulation.

So what is your view?

Testing Under 226/229 Vac/ 50 Hz.

2 hours period

Base Down Base Up
Ambient 30.0 C 31.1 C

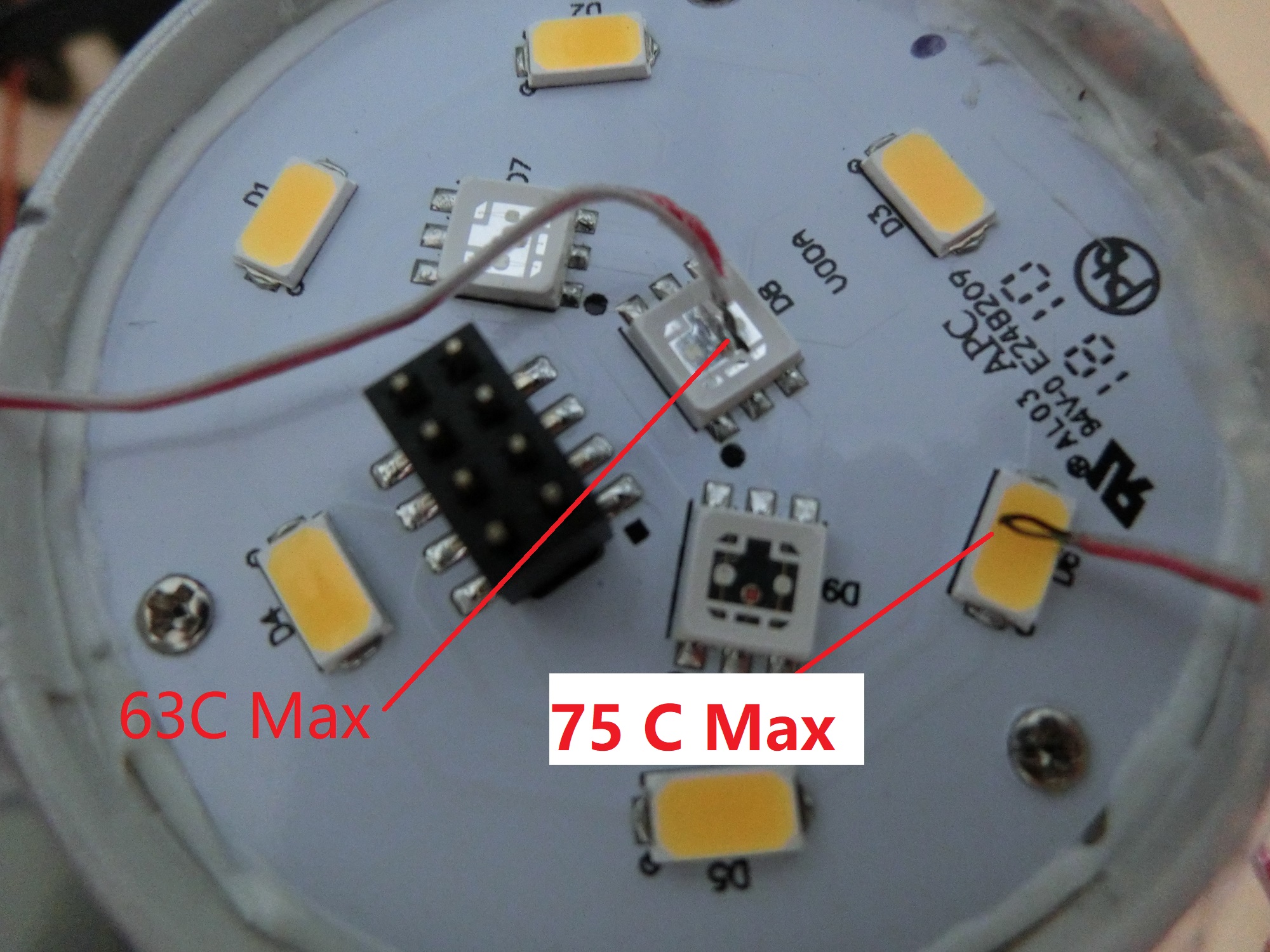

RGB LED Chip(Center location) 63 C
LED Chip(White) 75 C
LED Bulb Housing close the LED Board 59.7 C 63.9 C
LED Bulb Housing Label 59.9 C 62.6 C

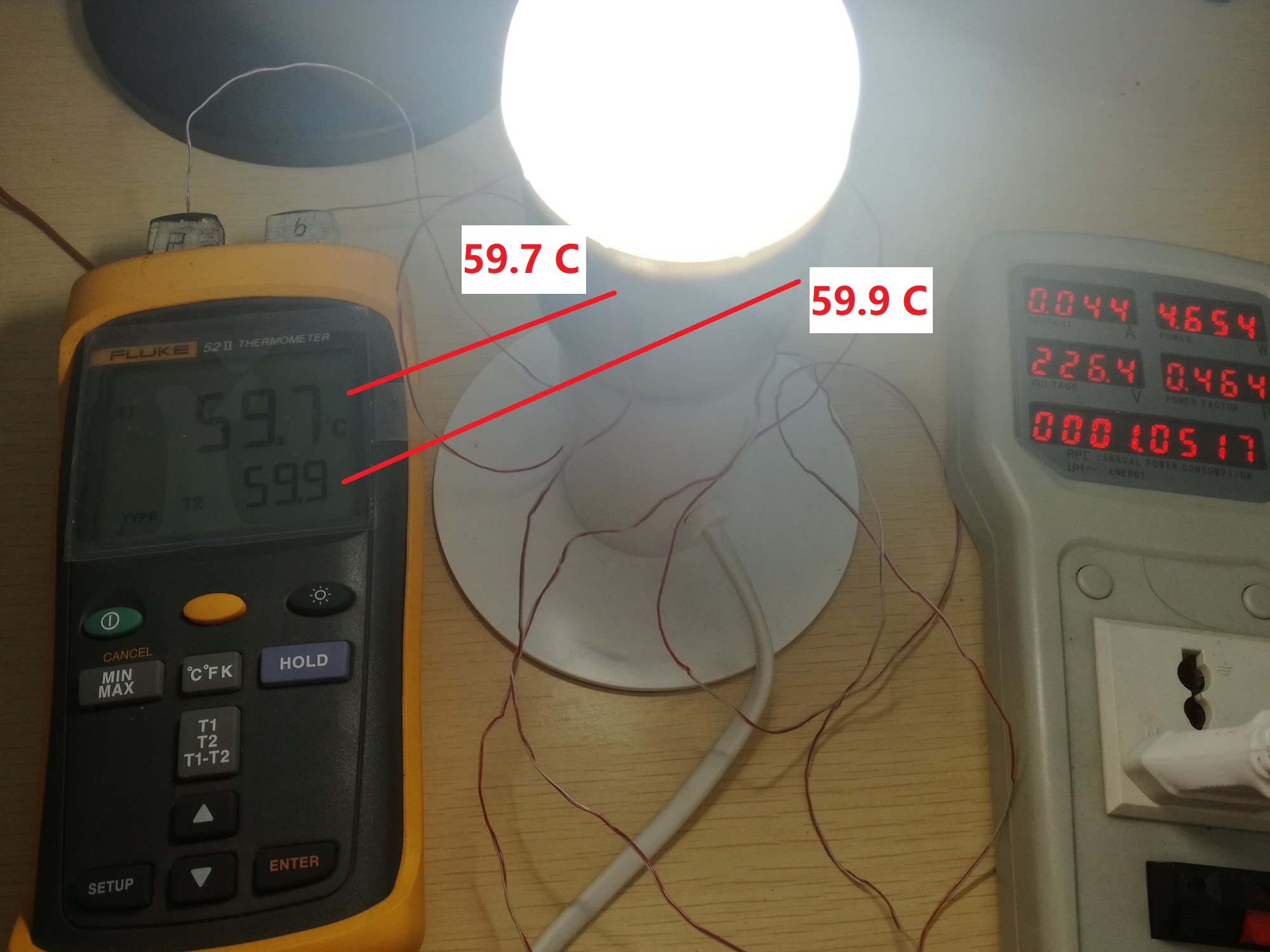

lifesmart-led-smart-bulb-thermal-testing-base-up

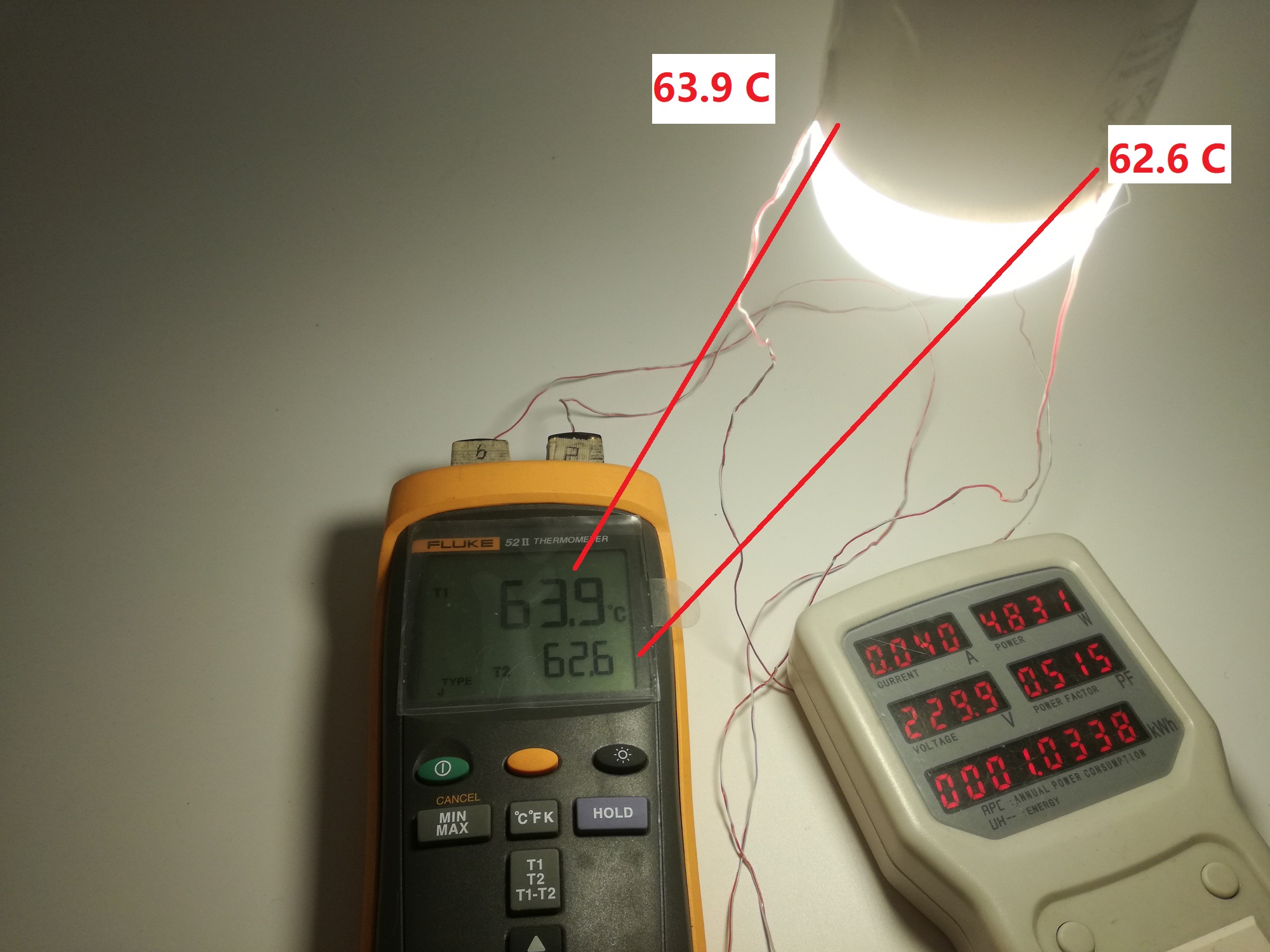

Lifesmart LED Smart Bulb Basedown Mode

Life-smart-led-smart-bulb-base-down

Lifesmart LED Smart Bulb Baseup Mode

LED-Chip-testing -base-up

Lifesmart LED Smart Bulb LED Chip, Basedown Mode

Lighting Output

Testing with APP. It is not hard to use the APP. there are many button of different color. But is it useful except for disco.

 Video From Youtube

How about remove the Diffuser?

 Video From Youtube



Flicker

Video From Youtube

Teardown

Come On, Let us open this damn LED Bluetooth Bulb.

Video From Youtube

With tooth, easily to remove the diffuser to review the LED Board. The Black one is connector, easily to assemble in the production.

Video From Youtube

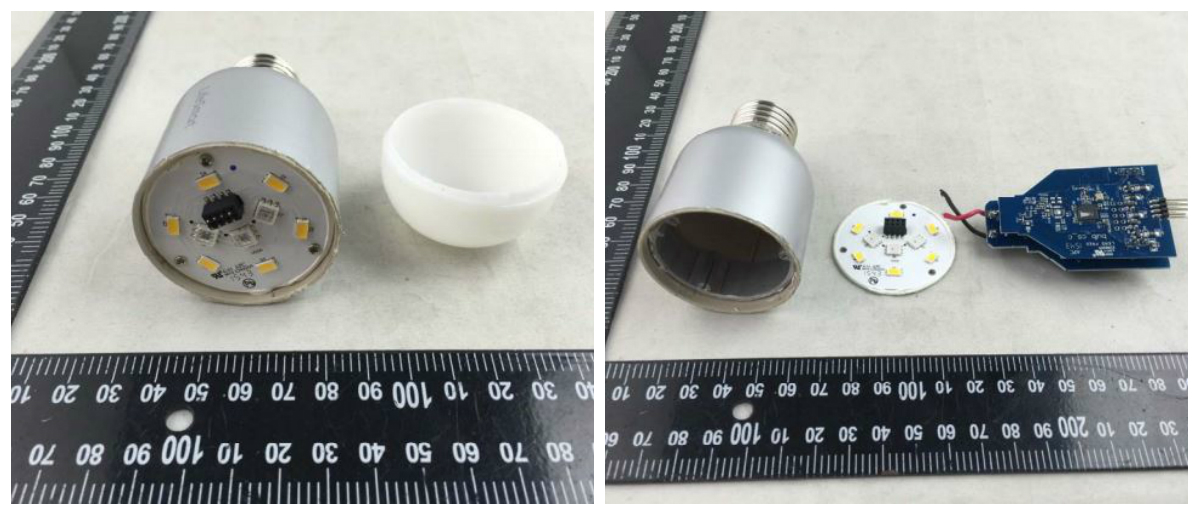

It can save the time. 6 pcs LED bulb yellow and 3 Pcs RGB LED chips.

life-smart-smart-led-bulb-diffuser-open

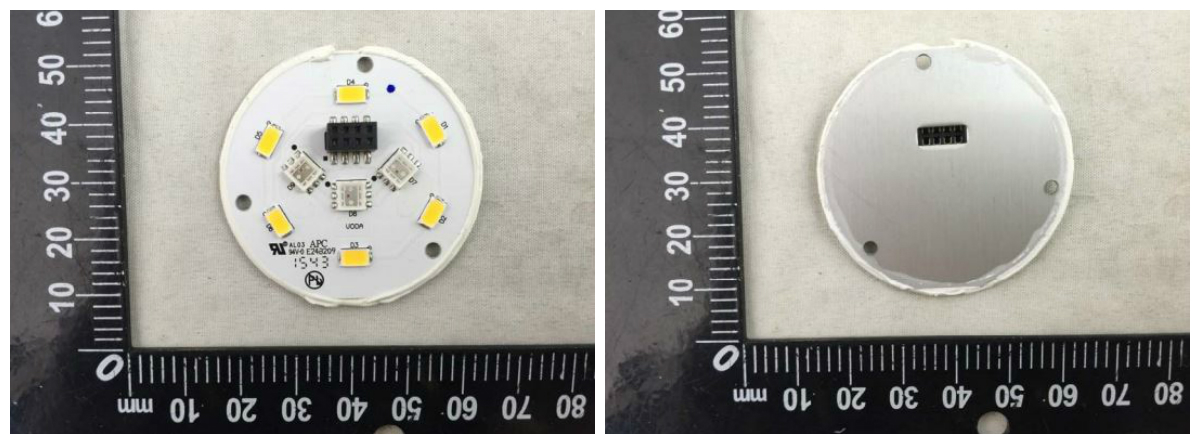

Look at the LED board. The UL File no E248209 is telling you the manufacturer. It is Lifesmart’s supplier, Accelerated Printed Circuit Board Co.,LTD, located in Shenzhen City, South of China. UL File Link, PCB factory link.

PB symbols mean no PB?! If yes, that will be great.

From the back view, there are some  glue, do this works?

Life-smart-led-board

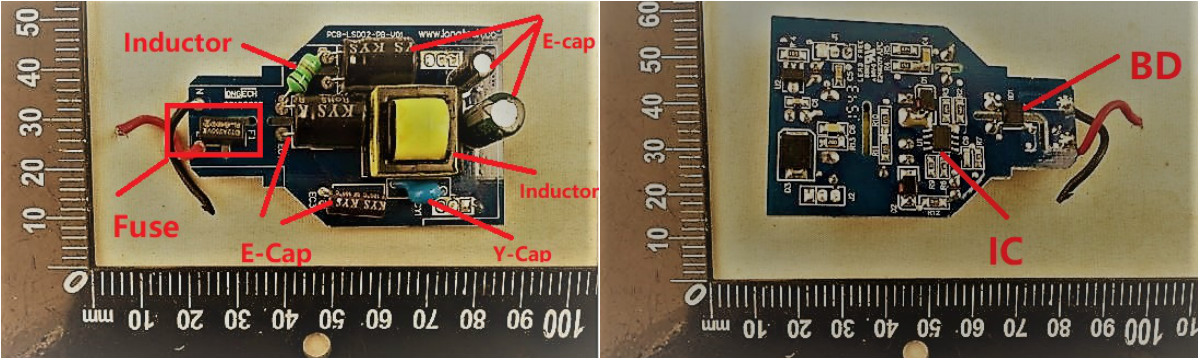

Unscrew the 3 screws, and remove the E27 Lamp Cap. Pull out the LED driver. here  is the LED driver. There are too many E-caps. What is going on with these? You may Know the life time of E-cap.

life-smart-led-bulb-driver-view

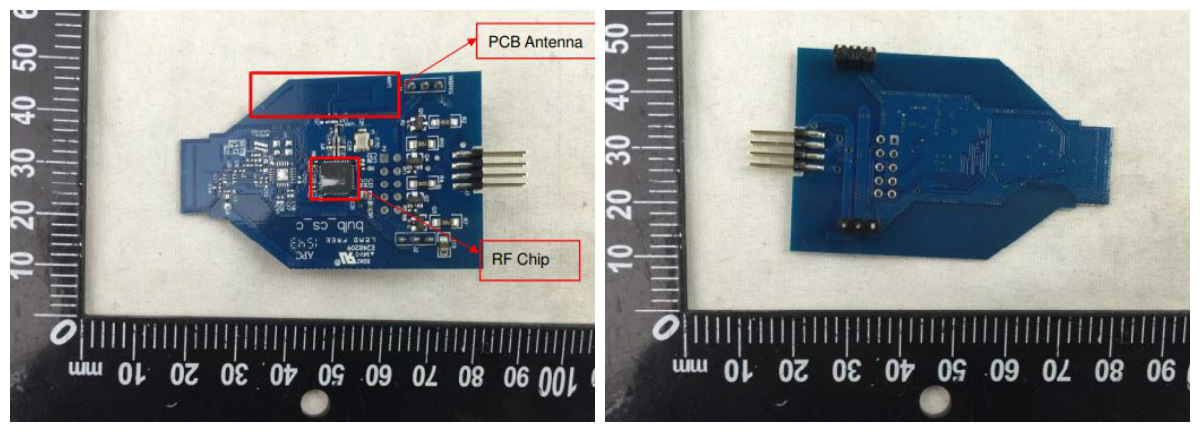

Communiation Part. Talking with your App Via Bluetooth IC. I am shocked about the location of the Antenna. inside the bulb, but not poke through the LED board. Why, avoid the EMC/FCC issue?

life-smart-blluetooth-antenna



The Antenna is quite important for LED Smart Bulb.The ears and brains of the bulb are mounted on digital daughterboard.

Lets look a glimpse on other brand construction first. You can find the difference easily.

IKEA Smart Wifi LED bulb

IKEA-Smart-LED-Bulb-Wifi-Module

Photo from Powerelectronictips

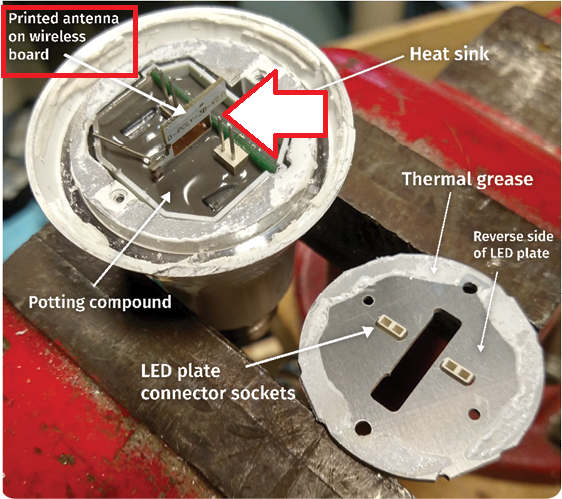

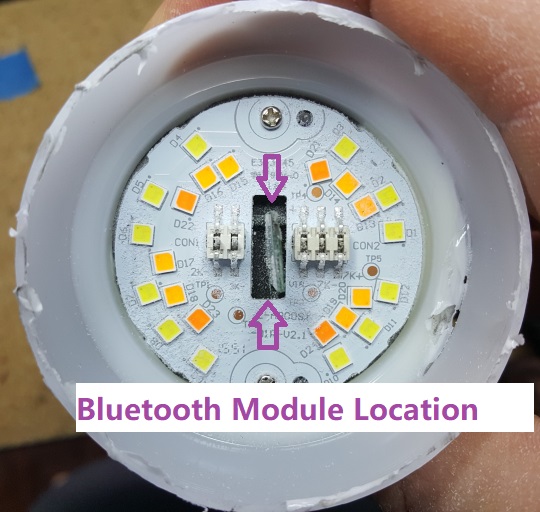

GE C-sleep Bluttooth LED Bulb

ge-c-sleep-bluetooth-module

Photo From Josh Teardown

So now, what is your opinion?

In A Nutshell

As my first “smart bulb”, I think it’s a nifty and useful gadget. handsome led bulb appearence.  The app is fair to good, some function is more than what is due. but it  isn’t compatible with Alexa or Google Home .. Otherwise, it’s a decently priced, bluetooth controlled, color changing LED bulb. But the bluetooth circuit is inside the bousing, that is too bad design.
